EMPOWERING YOUR

SEDIMENT SAMPLING

SUCCESS.

A complete range of premium AISI 316 stainless steel corers and grabs for undisturbed sampling. Built for extreme reliability in shallow lakes, deep oceans, and everywhere in between.

Equipment catalog

/09 Items

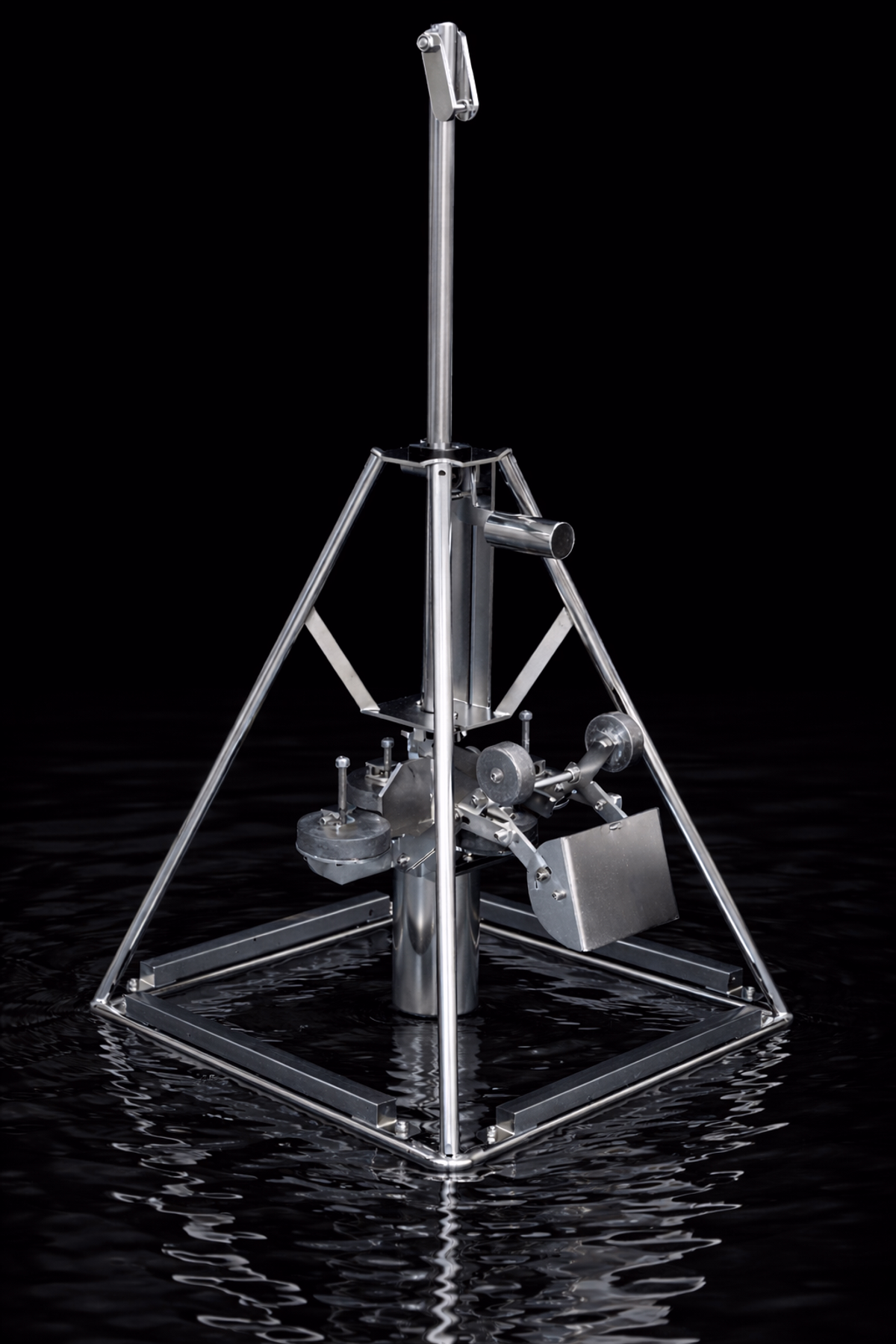

HAPS Bottom Corer

/01


Bottom corer for undisturbed sampling in soft and hard sediments

Produces clear water layer above sample

Made from AISI 316 stainless steel, electro-polished

Stainless steel or transparent polycarbonate tubes

Stepless penetration depth adjustment

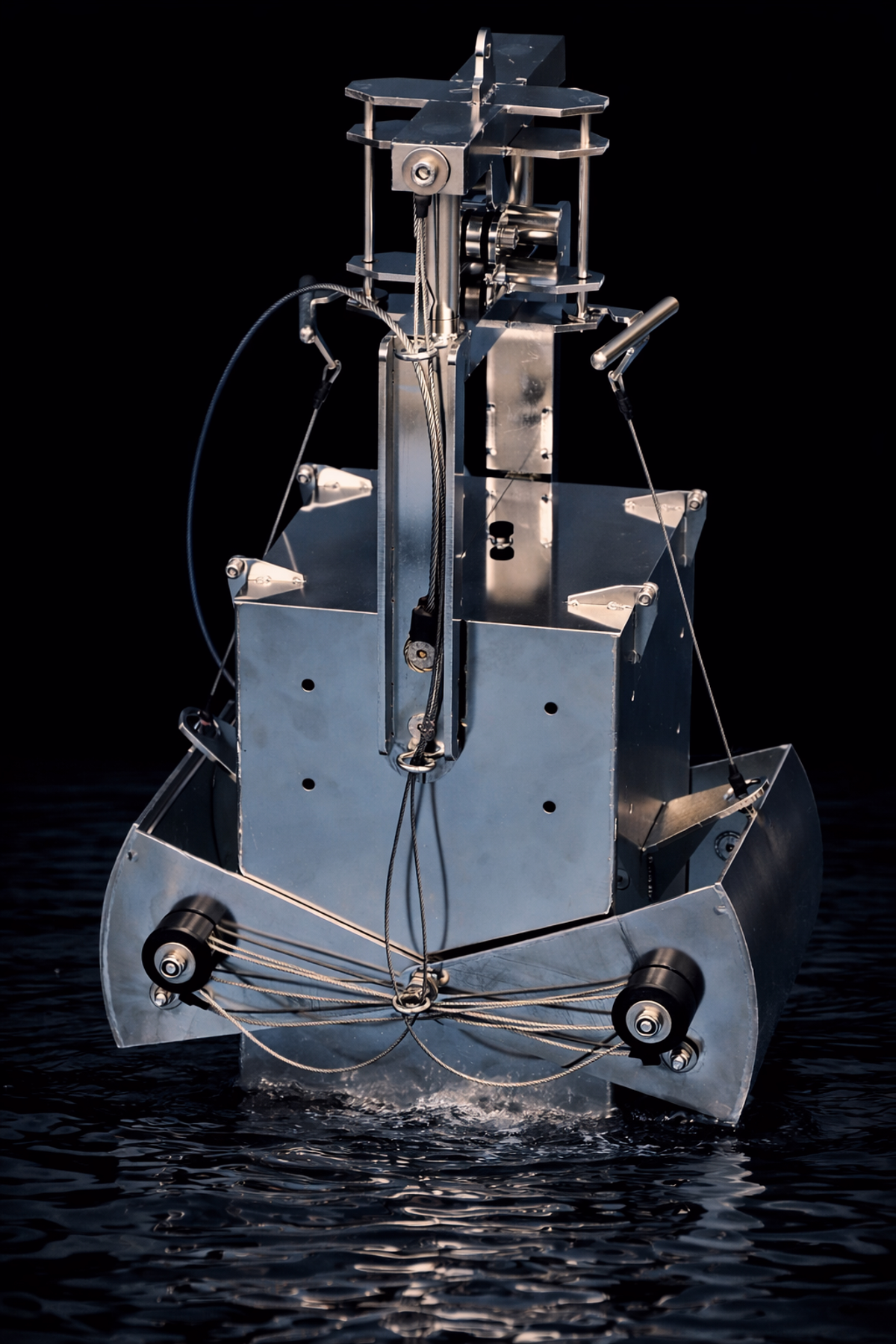

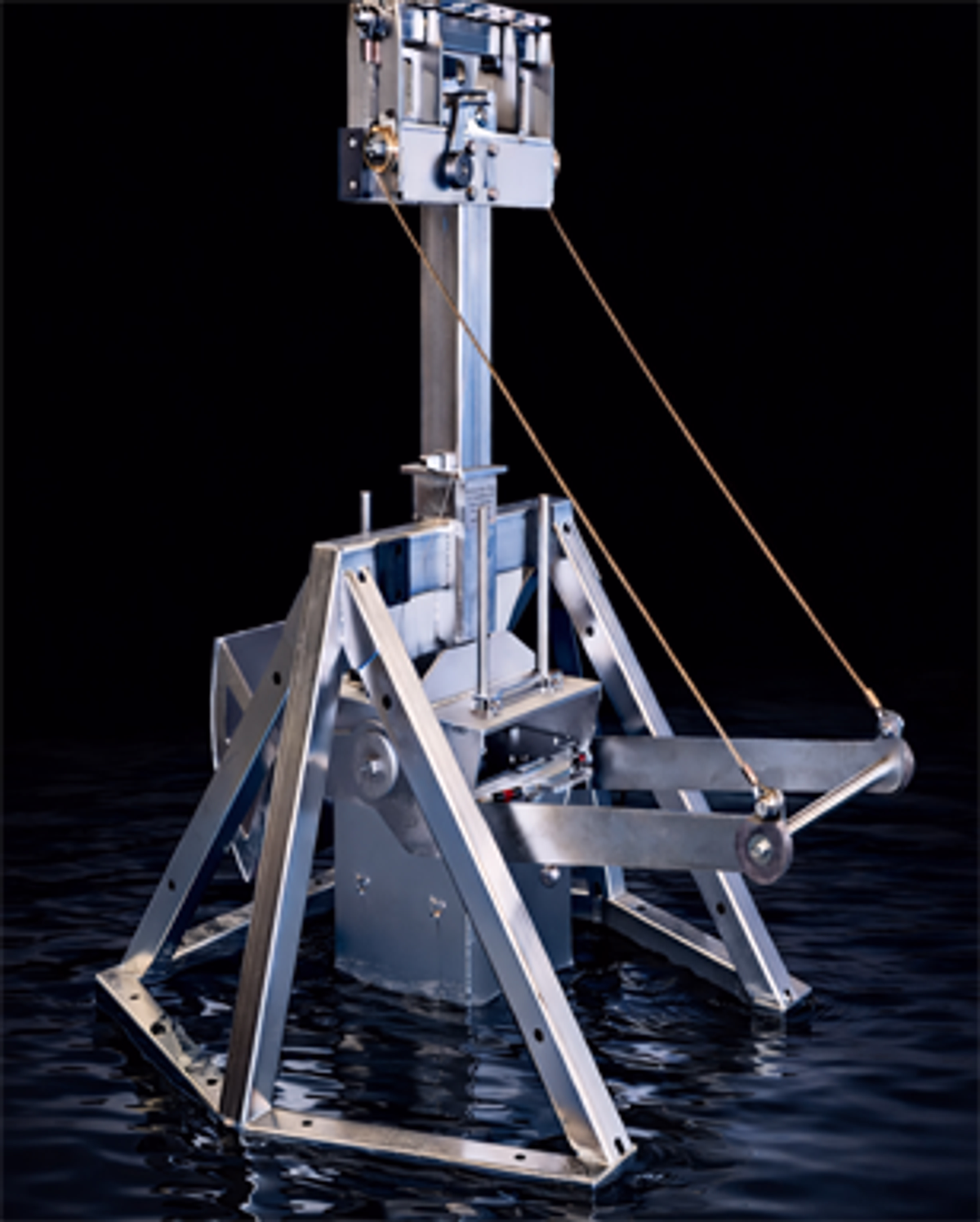

Box Corer

/02


Marine box corer for collecting undisturbed soft sediment

Suitable for lakes and oceans at any water depth

Design minimizes surface disturbance and bow-wave effects

Deployed from research vessels using deep-sea wire

Sizes: 600, 1000, 2500, 7500 cm²

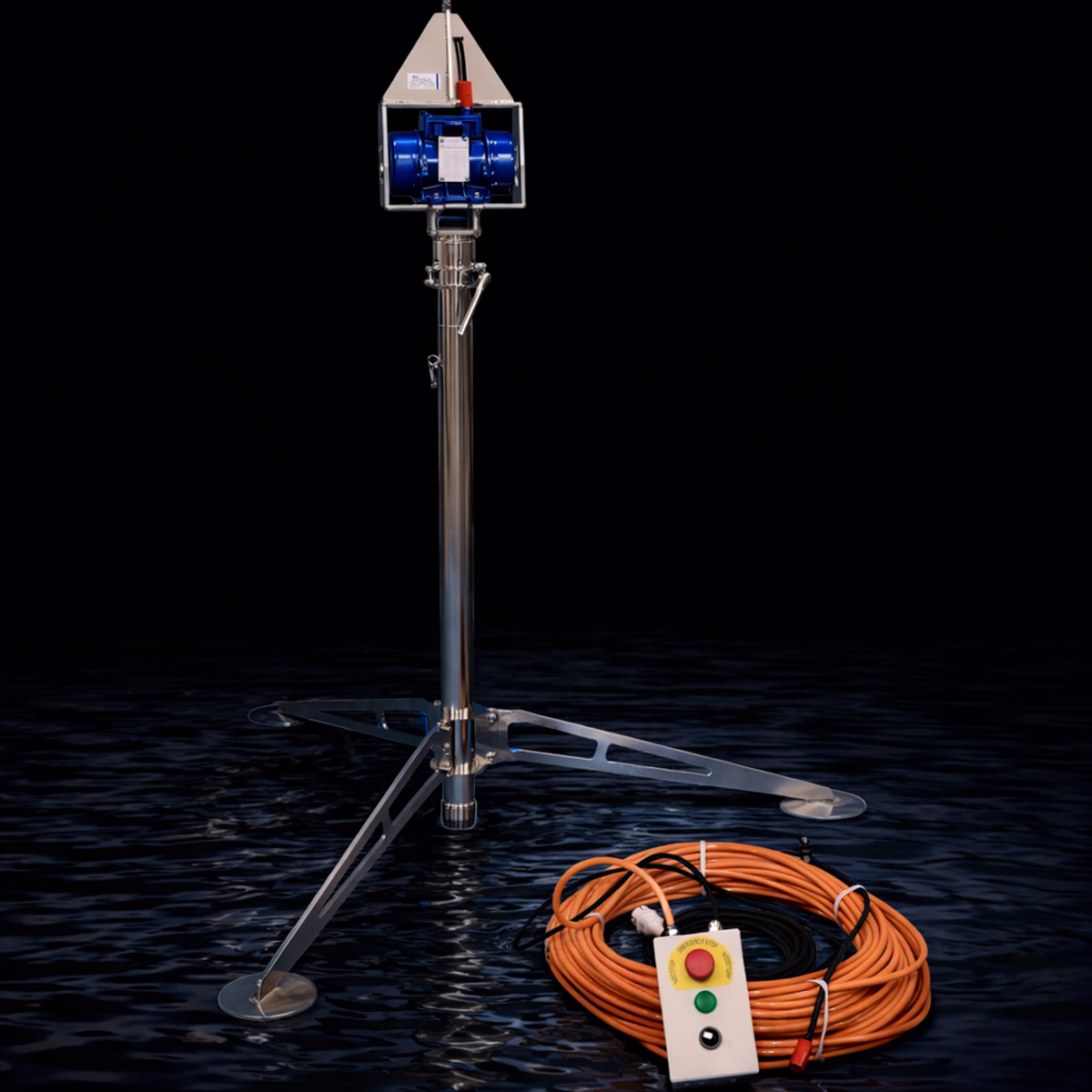

Kajak Corer (Vibrator)

/03


Compact corer for sampling in small wells and drill pipes

Integrated vibrator unit for improved penetration

Suitable for seabed use with optional tripod

Quick-change system for fast tube replacement

Max operating depth 70m (230 VAC / 180W)

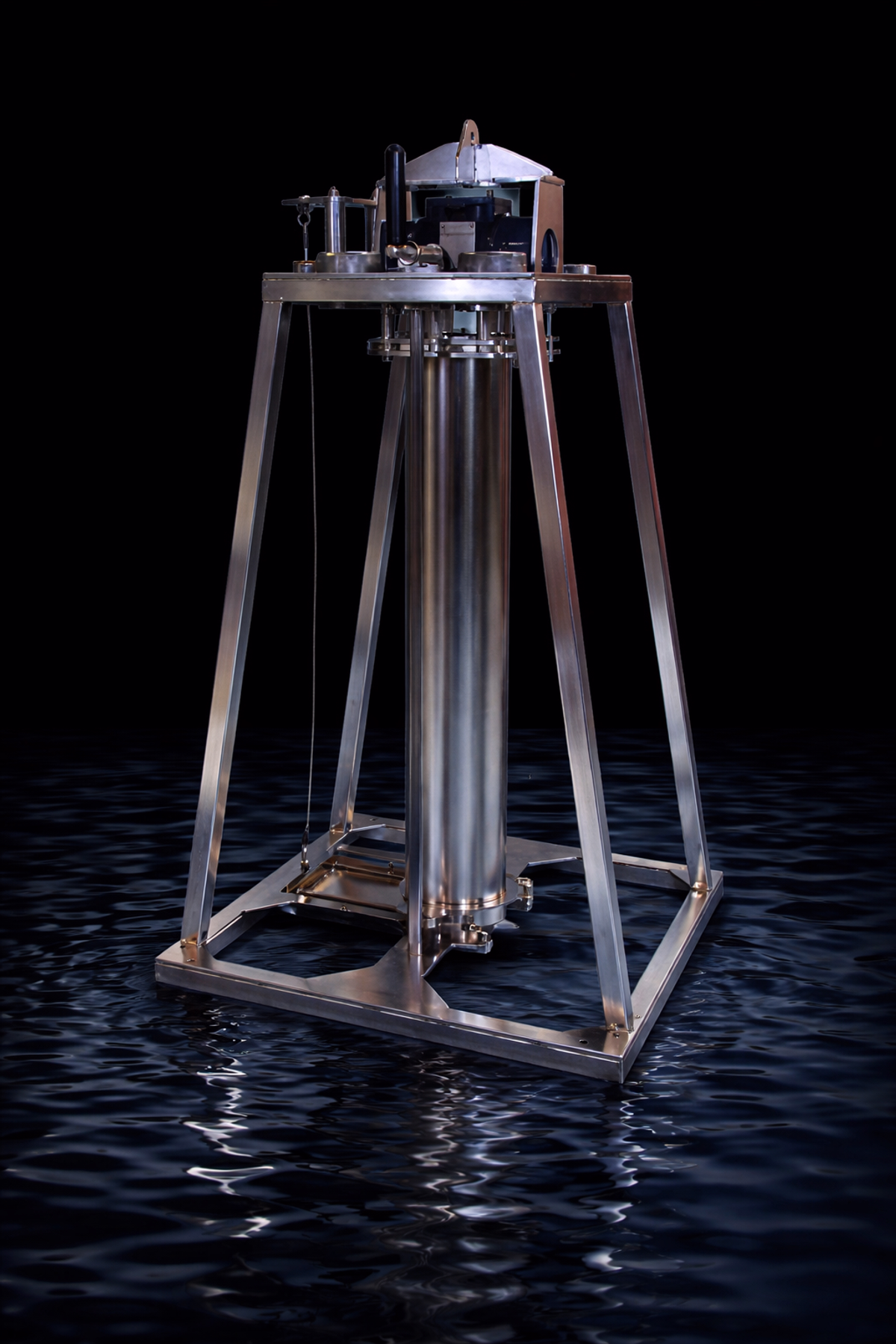

HAPS Corer (Vibrator)

/04


Vibrating bottom corer for undisturbed sampling in hard sediments

Clear water phase confirms minimal sample disturbance

Depths: Available in 80 cm and 200 cm

IP65 control box with Subconn connector

Max operating depth 60m (70m cable supplied)

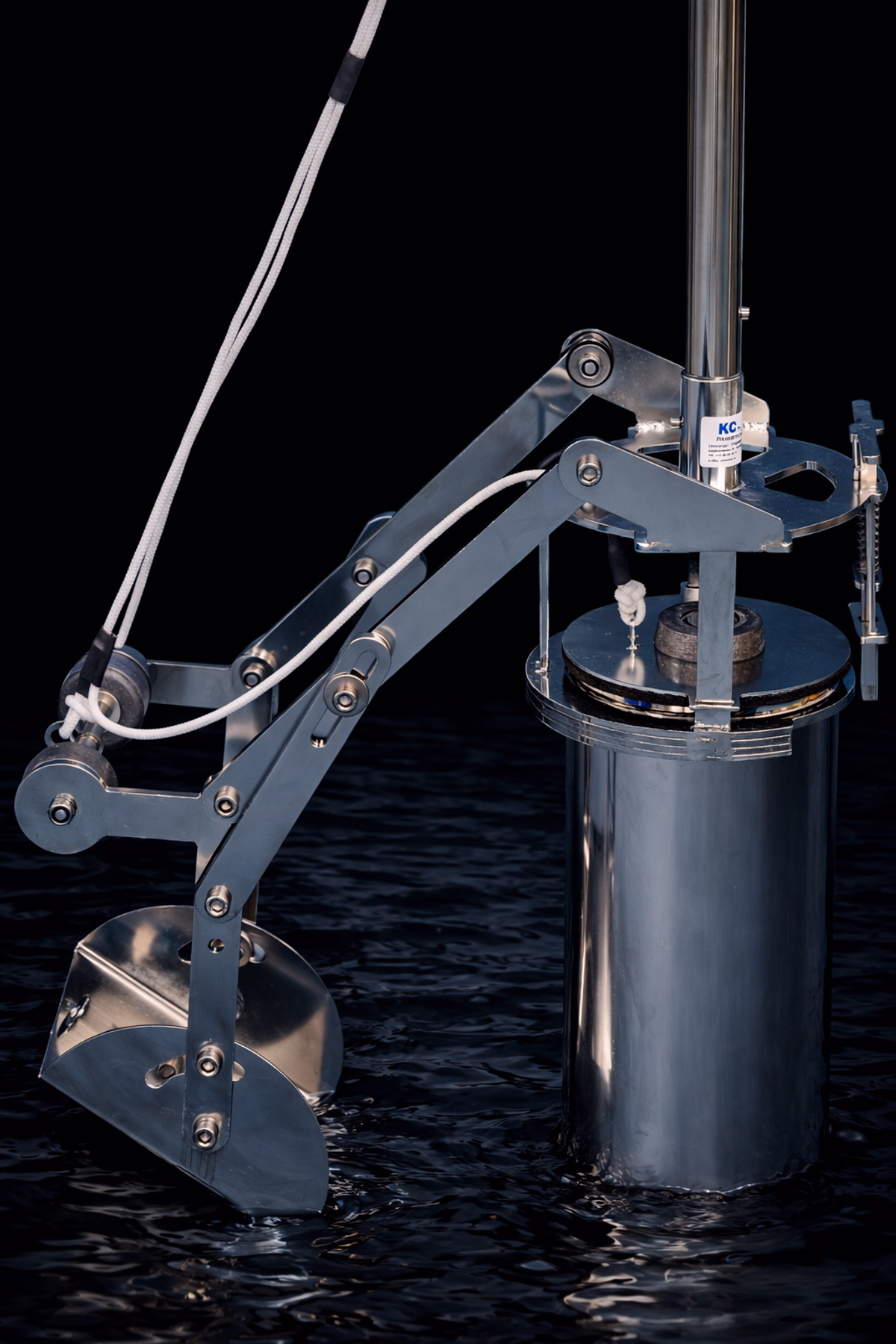

HAPS Corer (Hand Operated)

/05


Hand-operated corer for shallow lakes (≤4m depth)

Designed for half-hard sediments

4m stainless steel shaft (2 x 2m sections)

Non-return flap creates vacuum to retain sample

Manual line system controls opening and closing

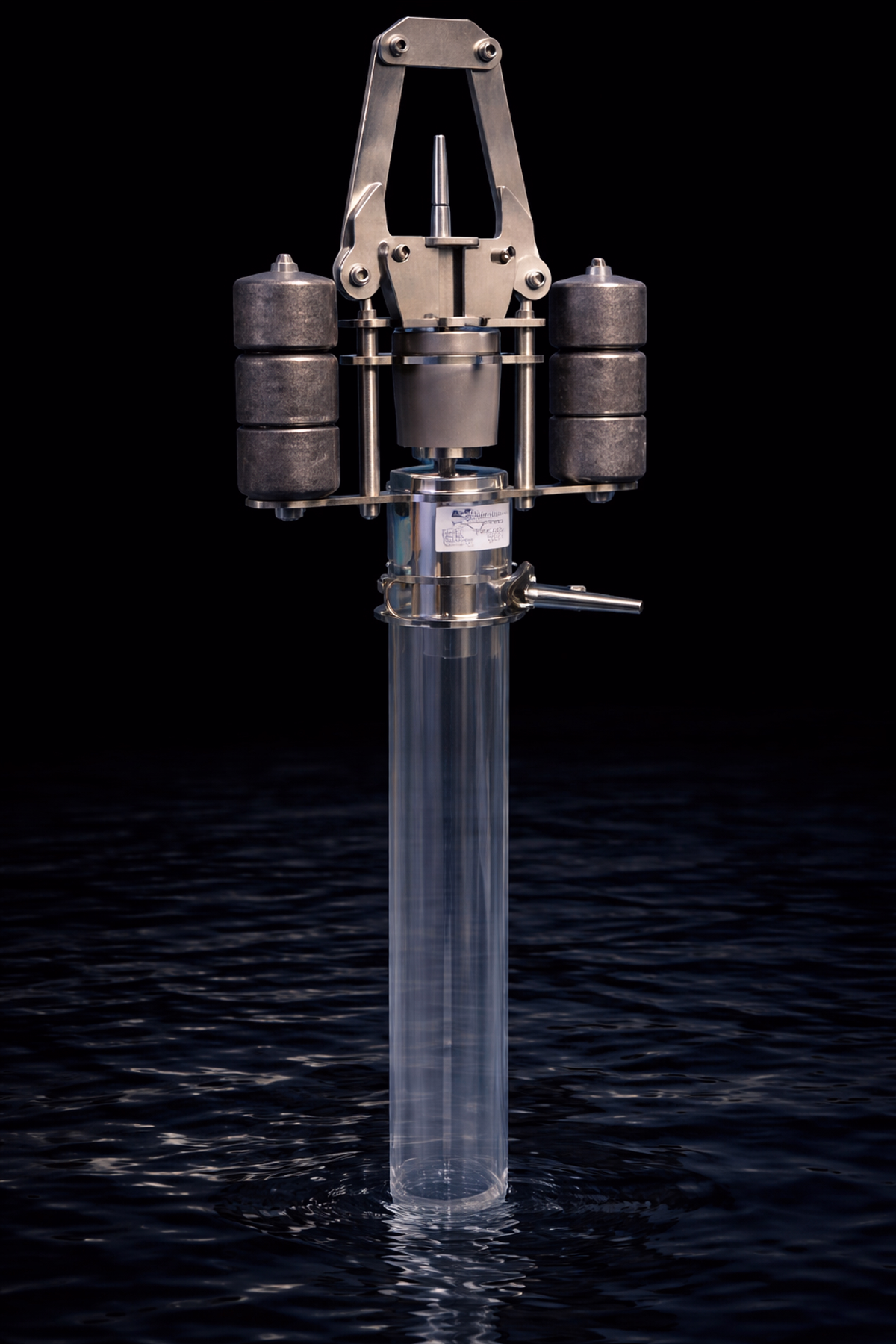

Kajak Sediment Corer

/06


Versatile sediment corer, hand operated or line operated

Based on proven Kajak design with wide accessory range

Orange peel core catcher prevents sample loss

Manual operation up to 4m water depth

Optional lead weights improve penetration in dense sediments

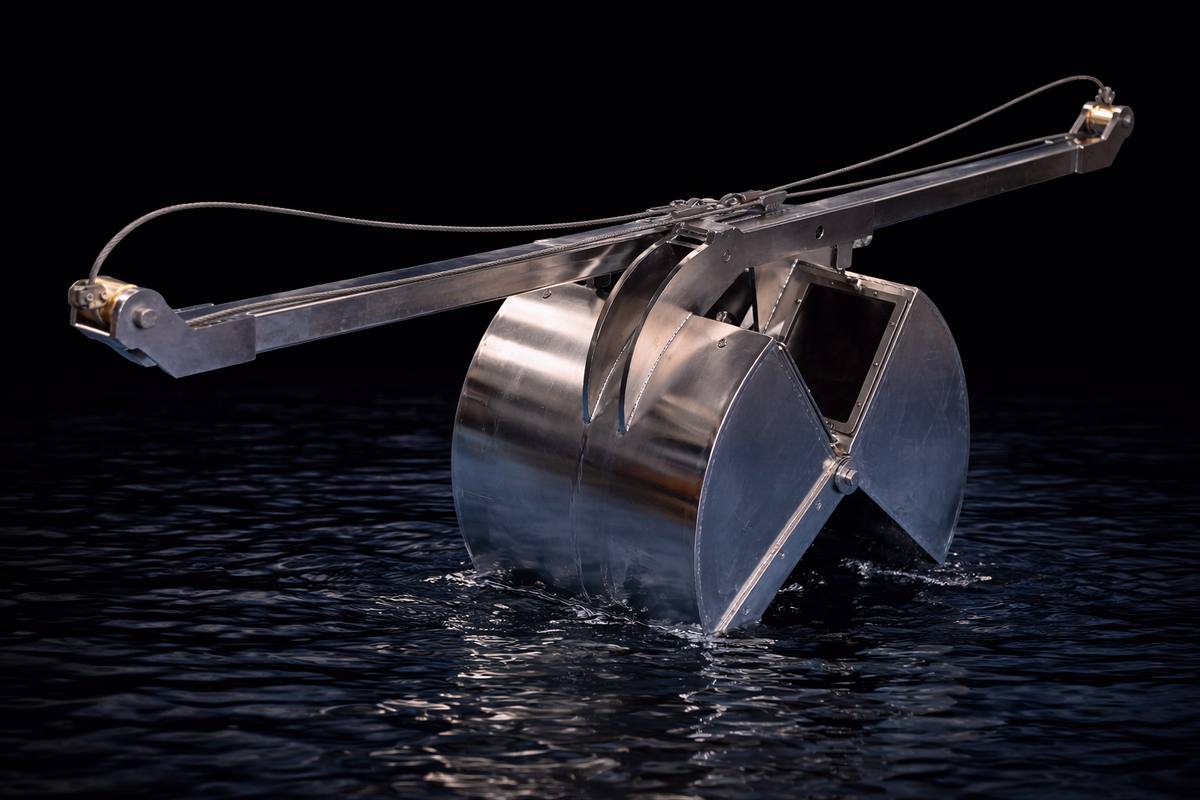

Van Veen Grab

/07


Bottom sampler for biological & environmental studies

Proven Van Veen design in robust 8mm AISI 316

Sizes: Available from 250 to 5000 cm²

Inspection lids allow undisturbed subsampling

Model 12.310 meets ISO 16665 marine guidelines

Ekman Bottom Corer

/08


Bottom grab for sediment sampling in soft seabeds

Deployed using steel wire (recommended Ø5 mm)

Automatic release when seabed contact reduces wire tension

Safety wire system protects deployment line

Sizes: Available in 225 cm² and 400 cm²

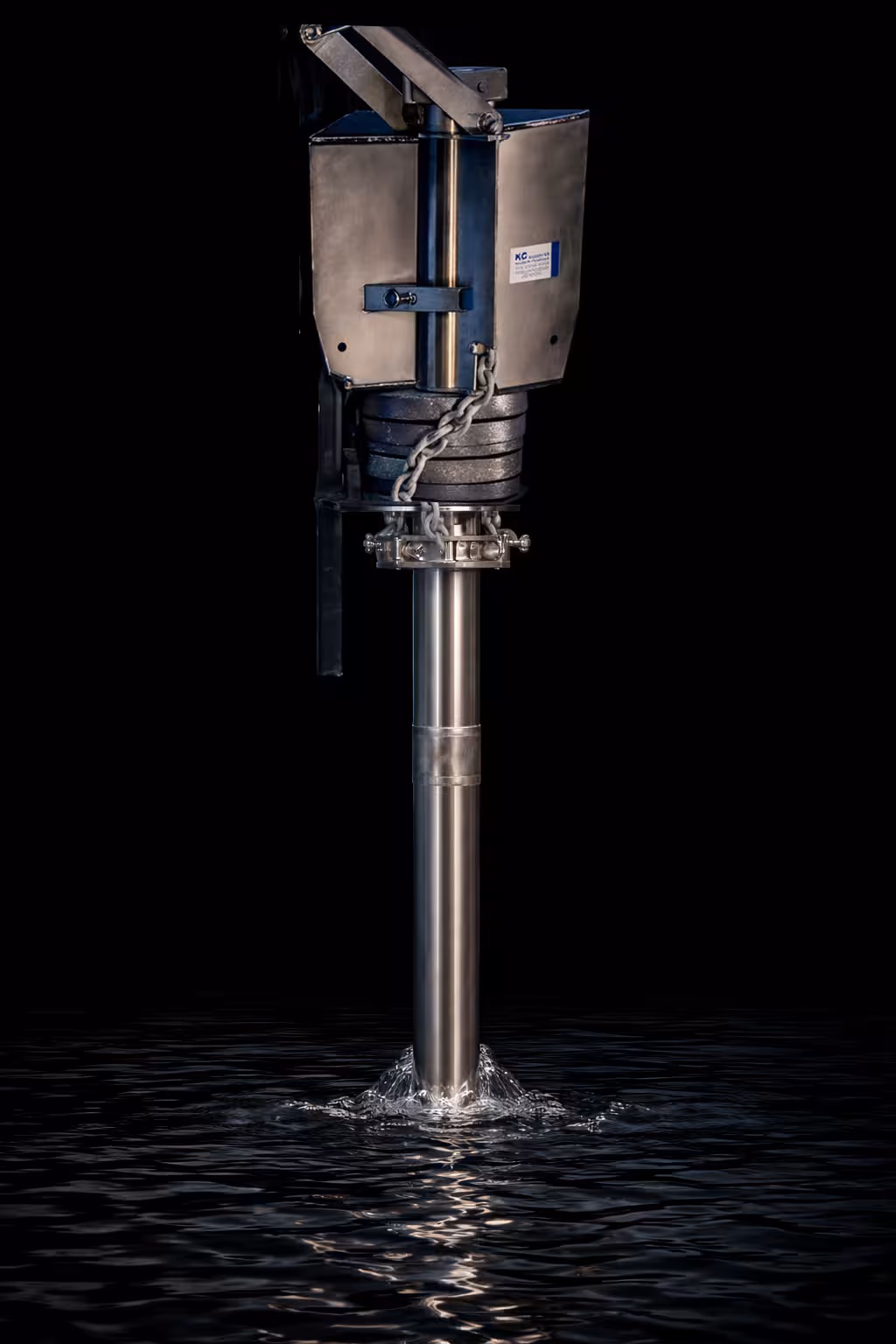

Piston Corer

/09


Piston corer for deep, undisturbed sediment sampling

Depth: Up to 2m in soft sediment, 4m in muddy sediment

Based on Kullenberg release principle for controlled penetration

Adjustable penetration using modular lead weights (up to 410kg)

Sample easily extracted using ratchet-driven extrusion system

Material Specifications

AISI 316
Stainless.

Almost our entire range of sediment sampling equipment is manufactured from premium AISI 316 stainless steel with an electro-polished finish.

This ensures maximum resistance against corrosion in harsh marine and freshwater environments, guaranteeing a long operational lifespan and preventing sample contamination.
