Sonic
Drilling.
/1
Sonic Heads
RSS160 & RSS190
Compatible with all major drill rigs. Designed to deliver absolute power and reliability in the most demanding geological formations.
Centrifugal Force
160 - 190
Kn (36 -43 K)
frequency
Up to 150
Hz
Torque
Up to 4,450
Nm
Rotation Speed
Up to 120
Rpm
Typical Performance (6" Casing)
RSS 160: Depth up to ±80m
RSS 190: Depth up to ±120m
How it works
Sonic is an advanced form of drilling that uses high frequency resonance energy generated in the SONIC HEAD to drive a drill string/core cylinder into geological formations. During drilling, the resonance energy with high frequencies is transmitted to the drilling surfaces via the drill string. By simultaneously rotating the drill string, energy and impact are evenly distributed.
Core Barrel Advancement
Casing override
Core barrel retrieval
Repeat Advancement
Advantages
Sonic drilling
Talpa Fielsd
Field work
Sediment Sampeling
Sonic drilling rigs
One technology, freedom of choice
While the Conrad Boxer 150 drill rig demonstrates perfect integration, our vision extends further. We believe that sonic technology should be accessible to the entire market. That is why TALPA sonic drill heads are designed for use on rigs from various manufacturers.
Whether you opt for the complete concept from Conrad Stanen, collaborate with another manufacturer, or wish to upgrade your existing fleet (retrofit): TALPA's sonic technology is universally applicable.

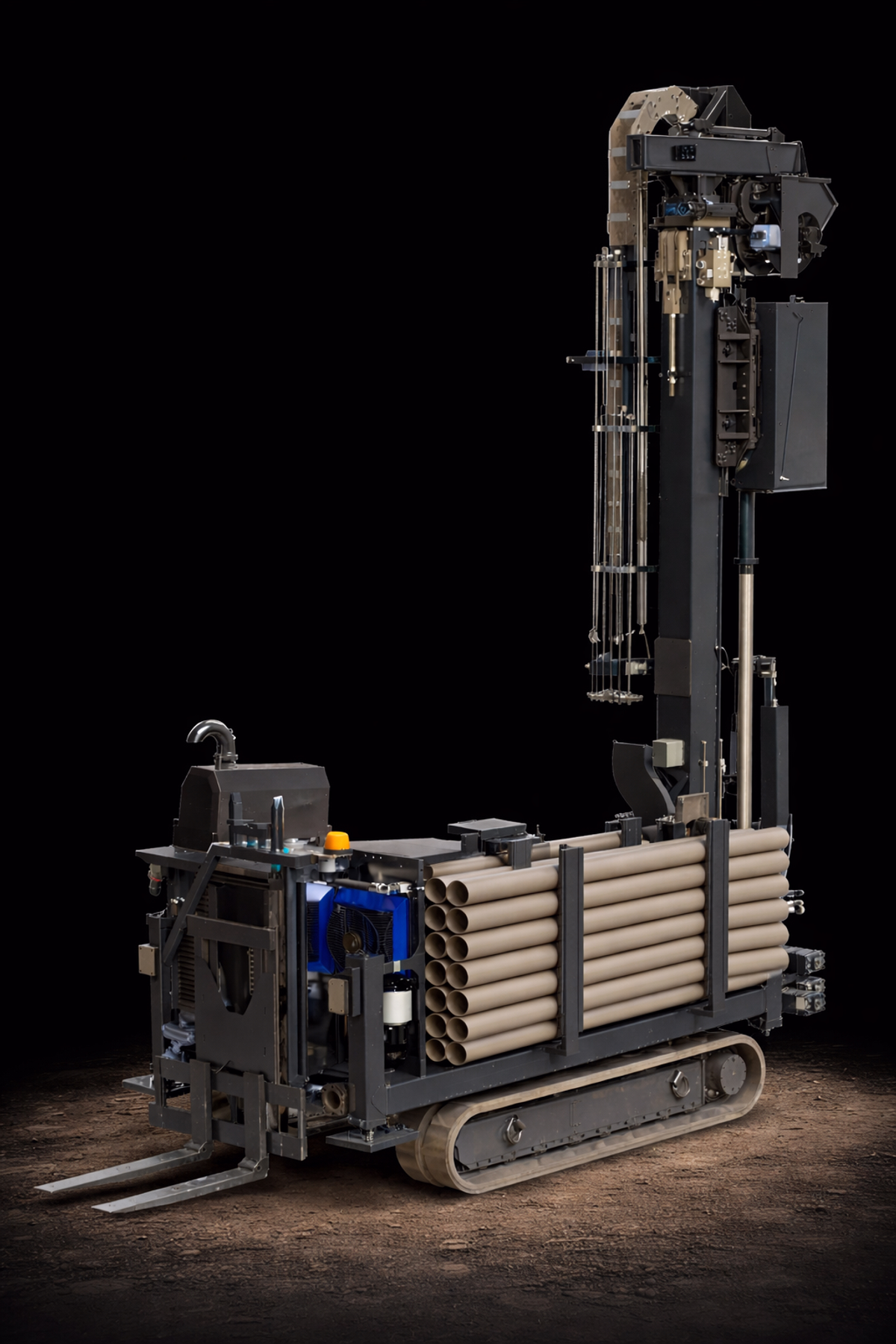

Conrad Boxer 150
Delivers a fully hands-off drilling concept with automated rod and casing handling for maximum safety and efficiency. Compact design, combined with a powerful 175 kW Volvo Stage V engine.
Equipped With
TALPA RSS 160 or RSS 190

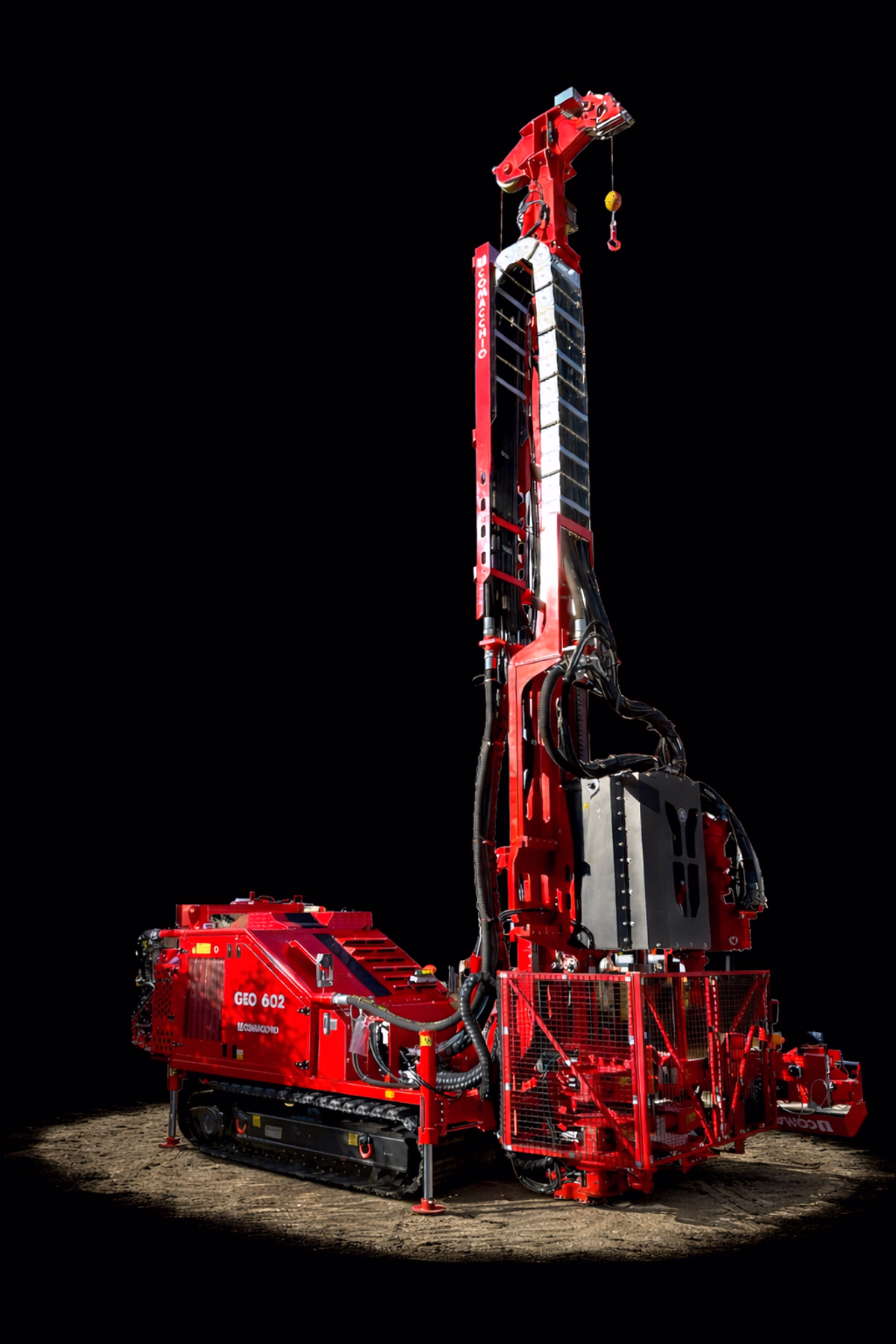

Comacchio 602
A true compact powerhouse. 115–119 kW engine capacity designed for heavy-duty performance in confined spaces.
Equipped With
TALPA RSS 160

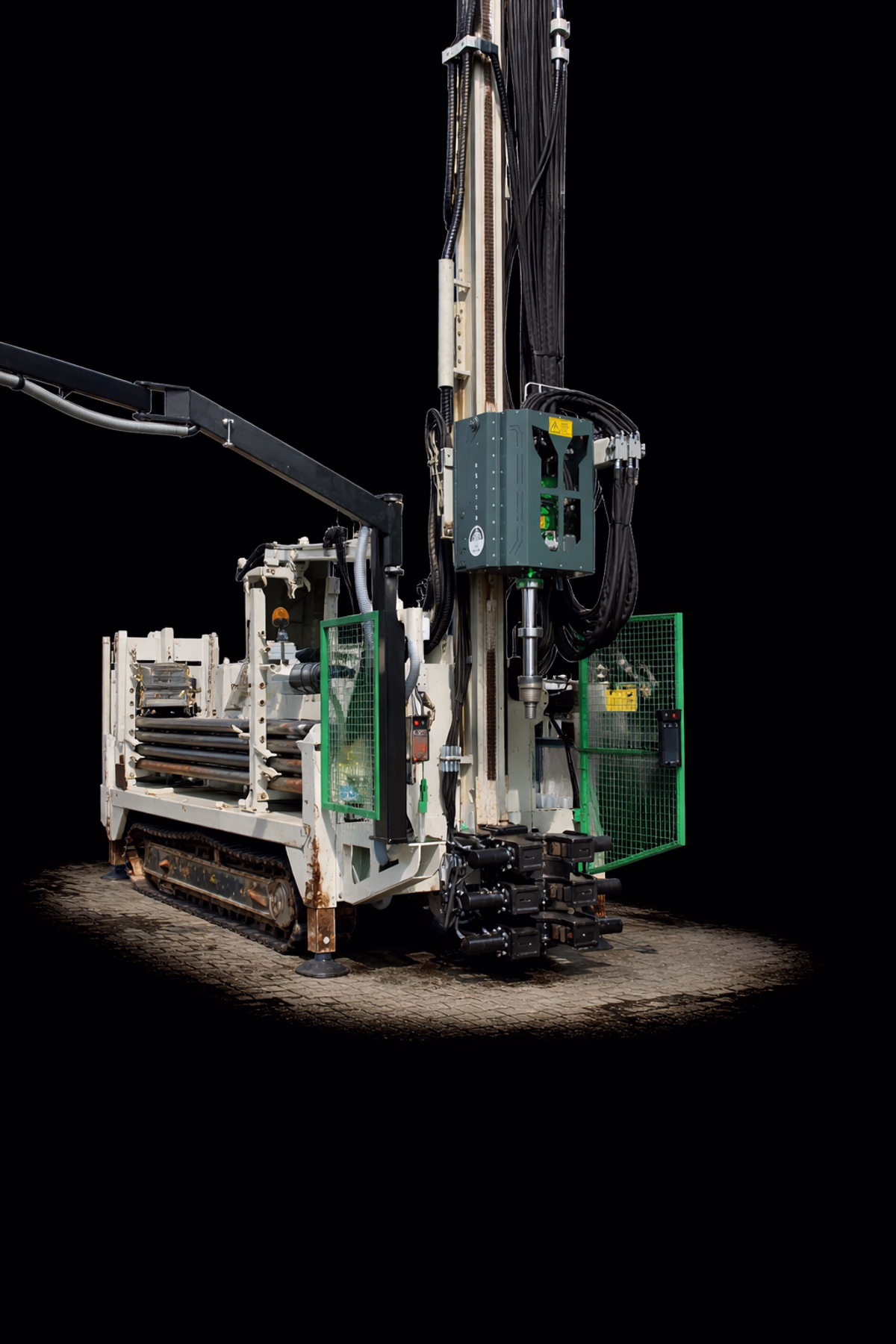

Converted Fraste XL 140
Retrofitted rig. We transform your existing or new drilling rig into a fully capable sonic rig, engineered to the correct specifications.
